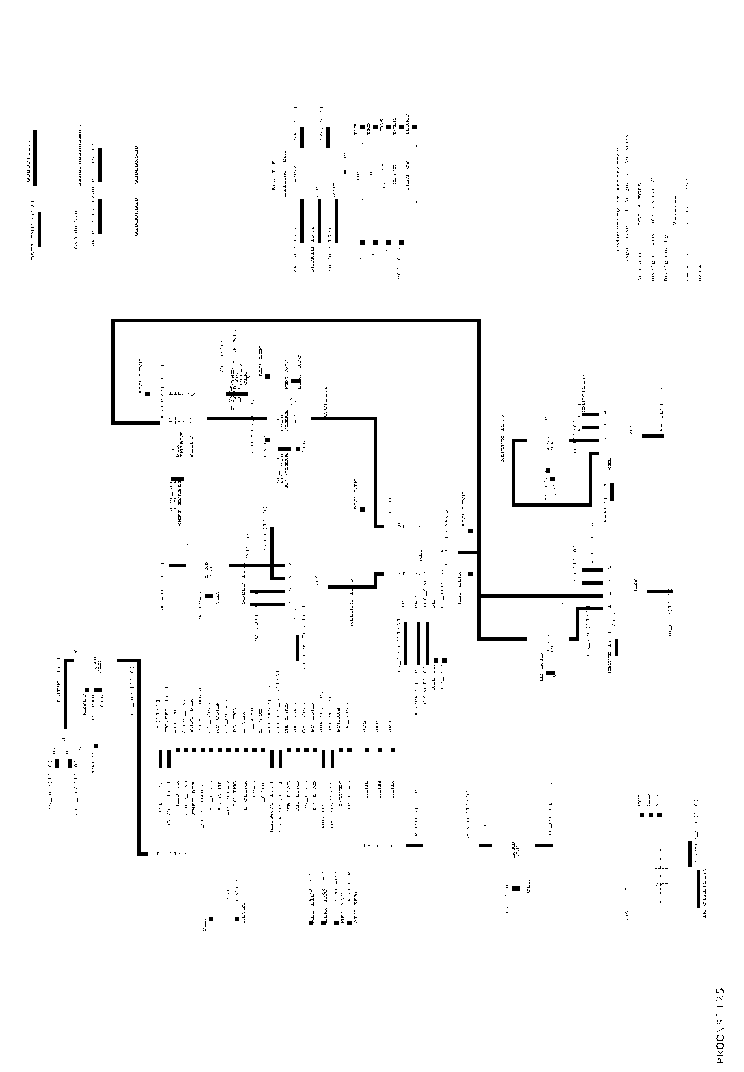

State-Signal Assignment

These state tables have been simplified for the purpose of this report

The table below defines the control pins required for each block in the design.

The PC increment requires a special increment in the ALU, since all other increments are twos complements increments. The PC increment should never have an effect on the Link bit.

// Assembler output to Xilinx Mem Converter

// Jon Andrews

// 12/12/1999

// ========================================================

// This program converts the output of the PDP-8 PAL

// assembler to a format which can be used on the Xilinx

// Engineering Board

// ========================================================

// PDP-8 PAL Assembler required to generate initial memory file

// This can be downloaded from:

// Compile using gcc –o asmtomem asmtomem.c

// Run using "> asmtomem <program name>" This will then read

// the program file with the extention .lst

// ========================================================

#include <stdio.h>

#include <stdlib.h>

struct memory_location {

char memaddr[10];

char memloc[10];

int imemloc;

int imeminst;

};

struct memory_location ci;

FILE *input_file;

FILE *output_file;

void print_hex(int data) {

if(data > 16) fprintf(output_file, "000");

if(data > 256 && data > 16 ) fprintf(output_file, "00");

if(data > 4096 && data > 256 ) fprintf(output_file, "0");

fprintf(output_file,"%x\n",ci.imeminst);

}

int decode(int location) {

if(location+1 == ci.imemloc) {

// good subsequent instruction

// fprintf(output_file,"%x\n",ci.imeminst);

print_hex(ci.imeminst);

location++;

}

else {

// requires padding

for(location; location<ci.imemloc; location++) {

fprintf(output_file,"0000\n");

}

// fprintf(output_file,"%x\n",ci.imeminst);

print_hex(ci.imeminst);

}

return location;

}

void main(int argc, char *argv[]) {

int location=0;

int memaddri=0;

int memloci=0;

int address_change=0;

int tempadd;

char ctemp;

char current_line[200];

// check that file was given

if(argc==1) {

printf("\n Usage: asmtomem file.lst\n\n");

exit(0);

}

// opens the input file

printf("PDP8 Assembler to Mem Converter\nProcessing File: %s\n",argv[1]);

if((input_file=fopen(argv[1],"r"))==NULL) {

printf("Unable to open input file\n");

exit(1);

}

if((output_file=fopen("test.mem","w"))==NULL) {

printf("Unable to open output file\n");

exit(1);

}

//temp = fgetc(input_file);

do {

fgets(current_line,200,input_file);

if(current_line[5] != ' ') { //check that not an empty line

for(memaddri=0;memaddri<=3;memaddri++){

ci.memaddr[memaddri]=current_line[memaddri+6];

}

for(memloci=0;memloci<=3;memloci++){

ci.memloc[memloci] = current_line[memloci+11];

}

// octal conversion for location

ctemp = ci.memloc[0];

tempadd = atoi(&ctemp);

address_change = tempadd*512;

ctemp = ci.memloc[1];

tempadd = atoi(&ctemp);

address_change += tempadd*64;

ctemp = ci.memloc[2];

tempadd = atoi(&ctemp);

address_change += tempadd*8;

ctemp = ci.memloc[3];

tempadd = atoi(&ctemp);

address_change += tempadd;

printf("INST:%d\n",address_change);

ci.imeminst = address_change;

// octal conversion for location

ctemp = ci.memaddr[0];

tempadd = atoi(&ctemp);

address_change = tempadd*512;

ctemp = ci.memaddr[1];

tempadd = atoi(&ctemp);

address_change += tempadd*64;

ctemp = ci.memaddr[2];

tempadd = atoi(&ctemp);

address_change += tempadd*8;

ctemp = ci.memaddr[3];

tempadd = atoi(&ctemp);

address_change += tempadd;

printf("LOC:%d\n",address_change);

ci.imemloc = address_change;

printf("%s\n",ci.memaddr);

printf("%s\n",ci.memloc);

location = decode(location);

}

} while (current_line[0] != 'e');

printf("Finished Processing\n");

}

/ ============================================================

/ Test Program - Load Constants using micro-coded instructions

/ Written by Jon Andrews on 05/02/2000

/ ============================================================

/ This program uses a number of combinations of microcoded

/ instructions to store the values, 0,1,2,2047,2048,4095,4094

/ in consecutive memory locations.

/ Store operations are performed inside a small subroutine to

/ show its effectiveness.

/ This program should be assembler with the pdp8 PAL assembler

/ For use on the PDP8-FPGA you will need to run the assembler

/ listing (tests_constants.lst) through 'asmtomem tests_constants'

/ This converts the memory format to one which will

/ work on the Xilinx Board

/ ============================================================

*0001

ADRS, 0020

*0030

INCADR, .-.

CLA

ISZ ADRS

JMP I INCADR

*0200

CLA

DCA I ADRS / Mem[20] = 0

JMS INCADR

CLA IAC

DCA I ADRS / Mem[21] = 1

JMS INCADR

CLA CLL CML RTL

DCA I ADRS / Mem[22] = 2

JMS INCADR

CLA CMA CLL RAR

DCA I ADRS / Mem[23] = 2047

JMS INCADR

CLA CLL CML RAR / Mem[24] = 2048

DCA I ADRS

JMS INCADR

CLA CMA / Mem[25] = -1 4095

DCA I ADRS

JMS INCADR

CLA CMA CLL RAL / Mem[26] = -2 4094

DCA I ADRS

JMS INCADR

HLT / Halt the processor

/ ============================================================

/ ============================================================

/ Test Program – Tests Memory Pages

/ Written by Jon Andrews on 05/02/2000

/ ============================================================

/ This program tests loading of values from the current page

/ and the zero page.

/ This program should be assembler with the pdp8 PAL assembler

/ For use on the PDP8-FPGA you will need to run the assembler

/ listing (tests_pages.lst) through 'asmtomem tests_pages'

/ This converts the memory format to one which will work

/ on the Xilinx Board

/ ============================================================

*0001

/ Zero Page Variable Setup

CONST1, 0001

CONST2, 0002

ADDR1, 0002

BASE, 0020

*0200

JMP AFVAL / Jump over variables

/ Current Page Variable Setup

CONST3, 0001

CONST4, 0002

ADDR2, 0202

BASE1, 0000

AFVAL, CLA / Clear Accumulator

/ Page Zero Variables

TAD CONST1 / Load value CONST1

TAD I ADDR1 / Load value [ADDR1] = CONST2

DCA I BASE / Store in [BASE] = 0020

/ Current Page Variables

TAD CONST3 / Load value CONST3

TAD I ADDR2 / Load value [ADDR2] = CONST4

DCA BASE1 / Store in BASE

HLT / Stop the Processor

/ Result is that

/ MEM(0020) == MEM(0204) == 0003

/ ============================================================

/ ============================================================

/ Test Program – All Jump Instructions

/ Written by Jon Andrews on 05/02/2000

/ ============================================================

/ Test JMP Instruction, Forward and Backwards Direct and

/ In-Direct

/ This program should be assembler with the pdp8 PAL assembler

/ For use on the PDP8-FPGA you will need to run the assembler

/ listing (tests_jumps.lst) through 'asmtomem tests_jumps'

/ This converts the memory format to one which will work

/ on the Xilinx Board

/ ============================================================

*0001

CST, 5252 / 101 010 101 010

CST1, 0202 / Used for in-direct jump from TAR4

MEMLOC, 0020

*0200

JMP ENDSETUP

TAR3, JMP TAR4

JMP TAR5

ENDSETUP, / If all jumps complete ACC should not be zero

CLA

TAD CST

JMP TAR1 / If jump sucessful to TAR1 ACC not cleared

CLA

TAR1, JMP TAR2 / Tests sucessive jumps

CLA

TAR2, JMP TAR3 / Tests backwards jumps

CLA

TAR4, JMP I CST1 / Tests Indirect jumps through variable on page 0

CLA

TAR5, DCA I MEMLOC / At this point ACC should not be zero

HLT / Halt CPU

/ Result is that

/ MEM(0020) == CONST == 5252

/ ============================================================

/ ============================================================

/ Test Program - Basic Skip instruction testing

/ Written by Jon Andrews on 05/02/2000

/ ============================================================

/ Test ISZ Instruction, to check both true and false skip

/ cases.

/ This program should be assembler with the pdp8 PAL assembler

/ For use on the PDP8-FPGA you will need to run the assembler

/ listing (tests_skips.lst) through 'asmtomem tests_skips'

/ This converts the memory format to one which will work

/ on the Xilinx Board

/ ============================================================

*0001

CST, 2525

NEG, 7777 / Value of -1, used to make skip instr skip

NEG1, 7777 / Value of -1, " " " " " "

NEG2, 7777 / Value of -1, " " " " " "

MEMLOC, 0020

*0200 / If all Skips correct

/ value of ACC should remain constant

CLA

TAD CST / Set ACC to be 2525

ISZ NEG / Increment and Skip next instr if result 0

CLA

ISZ NEG / Shoudn't skip next inst

CMA / Complement ACC

ISZ NEG1 / Should skip since NEG1 is -1

ISZ NEG2 / Tests sucessive skips if failure

CMA / Complement ACC - Back to original value

DCA I MEMLOC / At this point the ACC should be 2525

HLT / Halt the CPU

/ Result is that

/ MEM(0020) == CONST == 2525

/ ============================================================

/ ============================================================

/ Test Program - Block Memory Cop

/ Written by Jon Andrews on 05/02/2000

/ ============================================================

/ Copy a block of memory to a subsequent block

/ This program should be assembler with the pdp8 PAL assembler

/ For use on the PDP8-FPGA you will need to run the assembler

/ listing (tests_memcopy.lst) through 'asmtomem tests_memcopy'

/ This converts the memory format to one which will work

/ on the Xilinx Board

/ ============================================================

*0001

MEMLOC, 0020

MEMRES, 0031 / base of subsequent memory block

COUNT, 7770 / used for loop control

*0020

K1, 0001 / block of memory

K2, 0002

K3, 0003

K4, 0004

K5, 0005

K6, 0006

K7, 0007

K8, 0010

*0200

/ Copy memory block starting at 0020 to block starting at 0036

START, CLA

TAD I MEMLOC

DCA I MEMRES

ISZ MEMLOC / increment source memory location

ISZ MEMRES / increment destination memory location

ISZ COUNT / loop until all memory locations copied

JMP START

HLT / Halt the CPU

/ Result is that

/ MEM(0020)->MEM(0027) == MEM(0031)->MEM(0040)

/ ============================================================

/ ============================================================

/ Test Program - Test Nested Subroutine Calls

/ Written by Jon Andrews on 05/02/2000

/ ============================================================

/ This program will call subroutines nested within one another

/ and then return from each of them, incrementing the AC in

/ each routine

/ This program should be assembler with the pdp8 PAL assembler

/ For use on the PDP8-FPGA you will need to run the assembler

/ listing (tests_jumpsubs.lst) through 'asmtomem tests_jumpsubs'

/ This converts the memory format to one which will work

/ on the Xilinx Board

/ ============================================================

*0001

MEMLOC, 0003

*0020

SUB3, .-.

IAC

JMP I SUB3 / Return

SUB2, .-.

IAC

JMS SUB3 / Call to subroutine 3

JMP I SUB2 / Return

SUB1, .-.

IAC

JMS SUB2 / Call to subroutine 2

JMP I SUB1 / Return

*0200

JMS SUB1 / Call to subroutine 1

DCA I MEMLOC

HLT / Halt the CPU

/ Result is that

/ MEM(0003) == 0003

/ ============================================================

/ ============================================================

/ Test Program – Test Microcoded Instructions

/ Written by Jon Andrews on 05/02/2000

/ ============================================================

/ The optimised load constant test file used microcoded

/ instructions to a degree that shows their correctness

/

/ All microcoded instructions are tested as part of other

/ test files.

/

/ ============================================================

/ ============================================================

/ ============================================================

/ Test Program - Immidiate Mode Programming

/ Written by Jon Andrews on 05/02/2000

/ ============================================================

/ This program will check the processor can handle assembler

/ output when immidiates are used.

/ This program should be assembler with the pdp8 PAL assembler

/ For use on the PDP8-FPGA you will need to run the assembler

/ listing (tests_immidiate.lst) through 'asmtomem tests_immidiate’

/ This converts the memory format to one which will work

/ on the Xilinx Board

/ ============================================================

*0001

MEMLOC, 0003

*0200

TAD (7) / Load immediate value 7

DCA I MEMLOC / Store ACC to memory

ISZ MEMLOC / Increment target memory location

JMS I [SUB1] / Call Off-page sub routine

DCA I MEMLOC / Store ACC to memory

ISZ MEMLOC / Increment target memory location

TAD I (CONST) / Load off Page constant

DCA I MEMLOC / Store ACC to memory

HLT / Halt the CPU

*0401

SUB1, .-.

IAC

JMP I SUB1

*407

CONST, 1111 / Off Page Constant

/ Result is that

/ MEM(0003) == 0007

/ MEM(0004) == 0001

/ MEM(0005) == 1111

/ ============================================================

/ ============================================================

/ Bubble Sort Program for PDP8

/ Written by Jon Andrews on 15/03/2000

/ ============================================================

/ This program sorts the array of numbers below

/ so that they are in descending order

/

/ This program should be assembler with the pdp8 PAL assembler

/ For use on the PDP8-FPGA you will need to run the assembler

/ listing (bubble.lst) through 'asmtomem bubble' This converts

/ the memory format to one which will work on the Xilinx Board

/ ============================================================

*0001

K1, 0001 / data block to sort /0001

K2, 0010 /0008

K3, 0005 /0005

K4, 0013 /000B

K5, 0100 /0040

K6, 0204 /0084

K7, 0504 /0144

K8, 0030 /0018

*0030

NUM, 0010 / number of elements to sort

ADDR1, 0001 / var1 memory location

ADDR2, 0002 / var2 memory location

LOOPO, 7771 / outer loop count - count towards zero

LOOPI, 7771 / inter loop count - count towards zero

TEMP, 0000 / temp location to do swap in

ORG1, 0001 / starting values for addr1

ORG2, 0002 / starting values for addr2

ORG3, 7771 / starting values for loopi

*0200

CLA CLL / start by clearing acc

TAD LOOPO / load outer loop counter

OUTER, SNA / if outer loop counter zero then need to hlt

JMP FINISH / jmp to halt when outer loop couter zero

CLA / clear ready to load ACC with counter

TAD LOOPI / load inner loop counter

JMP INNER / jump into inner loop

OUTERE, TAD LOOPO / load outer loop counter

IAC / increment inner loop counter

DCA LOOPO / store back incremented outer loop counter

TAD ORG1 / load in ORG1

DCA ADDR1 / store 1 into addr1

TAD ORG2 / load in ORG2

DCA ADDR2 / store 2 into addr2

TAD ORG3

DCA LOOPI / store 7771 back it LOOPI - effective reset

TAD LOOPO / load outer loop counter back into ACC

JMP OUTER / jump back into outer loop

INNER, SNA / if LOOPI is zero inner loop finished

JMP OUTERE / jump to end out outer loop

/ do subtraction by complement, inc and add

CLA CLL / clear ACC ready for next value

TAD I ADDR1 / load first variable

CMA IAC / complement ACC and increment

TAD I ADDR2 / load second variable

SMA / skip if result negative

JMP RPOS / if result is positive, write back in rpos

INNERE, ISZ ADDR1 / increment address of var1

ISZ ADDR2 / increment address of var2

CLA CLL

TAD LOOPI / load inner loop counter

IAC / increment inner loop counter

DCA LOOPI / store back incremented inner loop counter

CLL

TAD LOOPI / load loop counter back into ACC

JMP INNER / jump back to beginning of inner loop

RPOS, CLA CLL

TAD I ADDR1 / load in var1

DCA TEMP / store var1 into temporary location

TAD I ADDR2 / load in var2

DCA I ADDR1 / store var2 into location of var1

TAD TEMP / load temp back in

DCA I ADDR2 / store back into location of var2

JMP INNERE

FINISH, HLT / Halt the CPU
